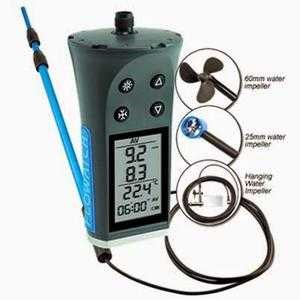

Flowatch FL-03 Current Meter | JDC | Swiss

Flowatch FL-03
Brand:FLOWATCH

Type: FL-03
Made in Swiss
Dimensions:ø65 x 155 mm
Weight:235g (main unit)

General data

This competitively priced instrument (flowmeter – thermometer) has been developed for use under challenging circumstances. Because of its different impellers, you can use it to measure amost any liquid or gaseous medium.

Fields of applications:

• Measure rivers flows
• Ocean flows
• Sewage flows
• Hydrological studies
• Chimney flues
• Irrigation canals
• Air conditioning conduits
• Ventilation shafts
• Aerological studies

Technical specifications

Flow speed measurement:

• Units
• Speed resolution
• Maximum speed

knots, mph, km/h, m/s, fps and cm/s
0.1 for all units (except im cm/s: 3cm/s)
Current, minimum, average, maximum temperature and windchill factor   Regular size
windspeed impeller Small size
windspeed impeller Water impeller

• Diameter
• Clearance hole
• Minimum sensitivity
• Accuracy
• “off-axis” error
• Operating temperature

Ø 20mm
Ø 33mm
< 3km/h – < 1m/s
± 2%
± 30° / ± 3%
-50°C to +100°C Ø 12mm
Ø 18mm
< 3km/h – < 1m/s
± 2%
± 10° / ± 3%
-50°C to +100°C Ø 60mm

<0.3km/h – <0.1m/s
± 2%
± 20° / ± 3%
